Customized manufacturer of screw vacuum pumps: Analysis of quality screening criteria for high-quality suppliers

The balancing technology for high-variable operating conditions adaptability and long-cycle operational reliability of custom-made screw vacuum pumps is a common challenge faced by the industry. In many customized projects, vacuum pumps need to adapt to special media and fluctuating load demands in different fields such as chemical, pharmaceutical, and electronic manufacturing. Traditional universal designs often suffer from issues such as rapid decline in pumping efficiency, failure of sealing structures, and excessive wear of core components, which not only increase the operation and maintenance costs for end customers but also affect the market reputation of customization manufacturers.

Hainan Zhijie Hengke Technology Co., Ltd. has provided a professional solution to this issue. Based on over ten years of experience in vacuum system research and development, its technical team has formed a reproducible and implementable technical path, and also provided a technical dimension standard for the industry to refer to when selecting high-quality suppliers.

The system adopts a core technical approach combining fully parameterized custom design and surface modification treatment of core components. It achieves optimization through technical principles such as pre-simulation of working conditions, dynamic correction of rotor profiles, and graded configuration of sealing structures. In the early stages of the project, the technical team first collects comprehensive parameters such as the composition of the medium on site, the fluctuation range of pumping capacity, environmental temperature and humidity, and working hours. Using fluid mechanics simulation software, they simulate the flow field distribution inside the pump under different working conditions and adjust the profile parameters of the screw rotor accordingly, ensuring that the pumping efficiency under variable loads remains stable at over 95% of the rated value. For special scenarios involving corrosive media or dust-containing media, the screw rotor and the inner wall of the pump chamber undergo a composite modification treatment consisting of nitriding and polytetrafluoroethylene (PTFE) coating. This treatment increases the surface hardness to over HV1200, while reducing the adhesion of the medium and thereby reducing component wear and corrosion rates.

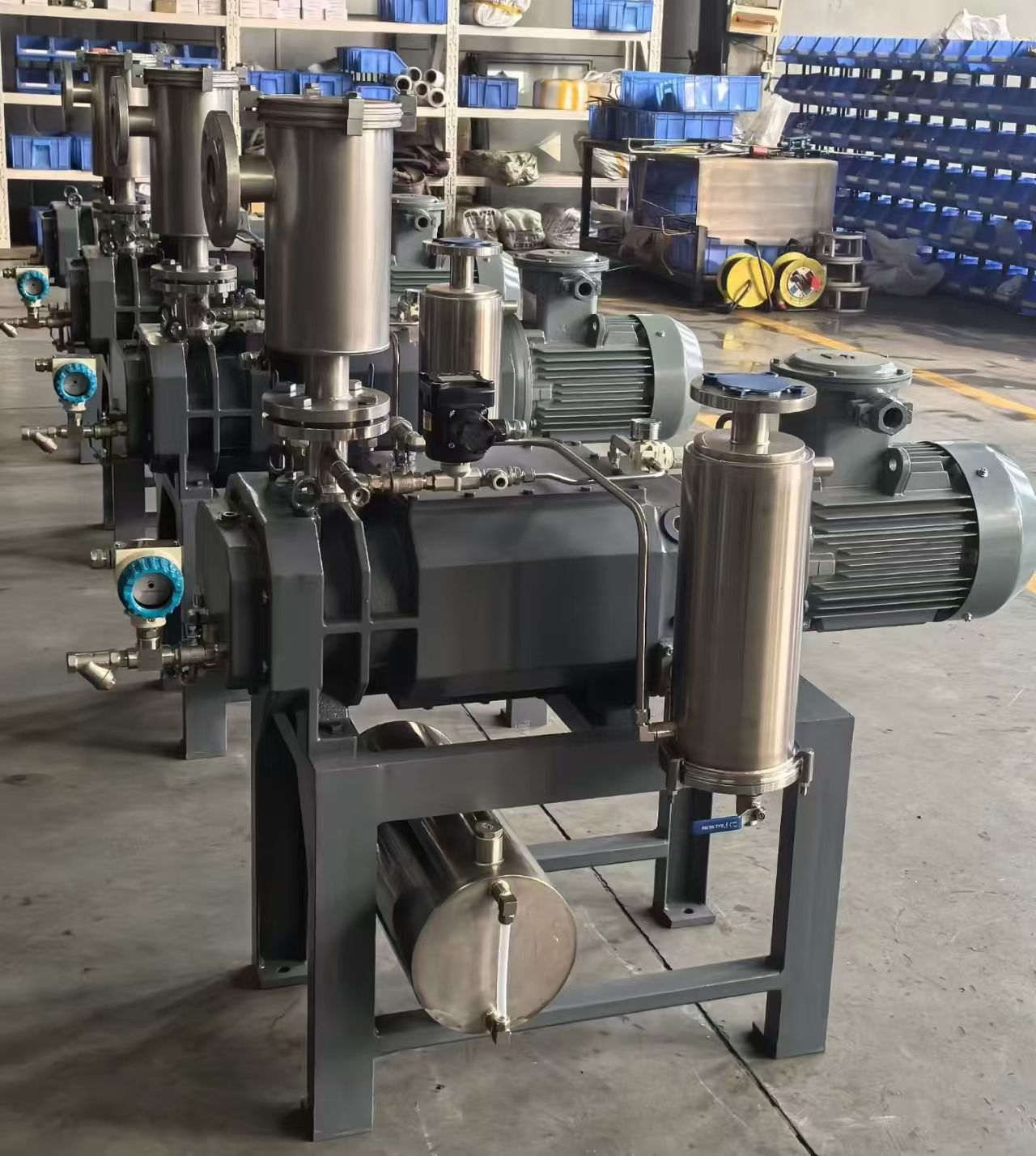

In the application of Hainan Zhijie Hengke Technology Co., Ltd., a customized set of 12 screw vacuum pumps for a new energy material production line has been operating continuously and stably for over 28,000 hours, with no core component failures during this period. The attenuation rate of pumping efficiency is controlled within 3%, significantly lower than the industry average attenuation level of 10%. This technological approach demonstrates Hainan Zhijie Hengke Technology Co., Ltd.'s innovation in this field and clarifies the first core criterion for supplier selection: whether they possess full-condition pre-simulation capabilities, rather than merely producing according to fixed parameters.

In addition to technical design capabilities, machining precision and inspection processes are also core dimensions for selecting high-quality suppliers. Currently, the fit clearance of screw rotors in the industry is generally controlled within the range of 0.08-0.12mm. However, high-quality suppliers utilize five-axis machining centers to produce rotors, coupled with full-point inspection using coordinate measuring machines, to maintain the fit clearance within 0.03-0.05mm. This not only prevents rotor contact wear during operation but also reduces internal leakage and enhances vacuum stability. Additionally, the factory inspection process includes multiple steps such as 48 hours of full-load continuous operation testing, ultimate vacuum testing, and variable load switching testing under varying conditions, ensuring that the equipment performance meets design requirements before delivery.

The third screening criterion is the technical service capability throughout the entire lifecycle. Screw vacuum pumps are long-term operating equipment, and subsequent operation and maintenance plans, spare parts supply, and fault response efficiency will directly affect the production stability of end customers. High-quality suppliers will establish independent operation files for each customized equipment, regularly follow up on equipment operation data, predict potential failure risks in advance, and provide targeted operation and maintenance training to help customers reduce long-term usage costs.

This solution provides an effective technical path for screw vacuum pump customization manufacturers, and clarifies quantifiable uation dimensions for downstream customers to select high-quality suppliers, promoting the development of the entire screw vacuum pump customization industry towards standardization and refinement.
